CWL Workflow: Calibration inputs to Simulation Model

Workflow: Calibration inputs to Simulation Model

Fetched 2023-05-17 15:38:32 GMT

Verified with cwltool version 3.1.20230201224320

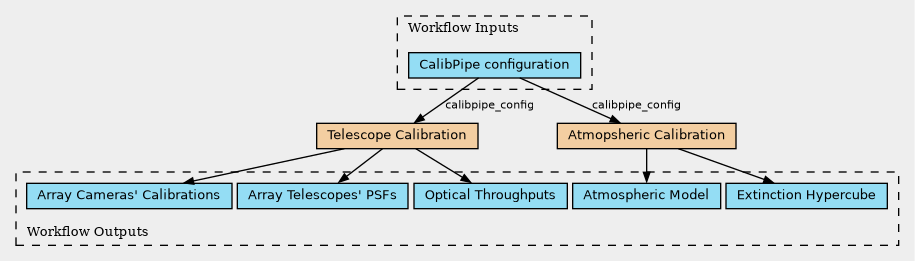

This workflow produces calibration inputs to simulation model: - atmospheric model - extinction hypercube - telescopes' cameras configurations - telescopes' PSFs - optical throughput

Selected
|
Default Values
Nested Workflows
Tools
Inputs/Outputs

This workflow is Open Source and may be reused according to the terms of: BSD 3-clause "New" or "Revised" License

Note that the tools invoked by the workflow may have separate licenses.

Inputs

ID	Type	Title	Doc
calibpipe_config	File	CalibPipe configuration	CalibPipe configuration. The data model is TBD. The format will be JSON or YAML, as supported by ctapipe.

Steps

ID	Runs	Label	Doc
calibrate_atmosphere	AtmosphericCalibrations/uc-cp-100.cwl (Workflow)	Atmopsheric Calibration	This workflow performs calibrates atmosphere and produces an atmospheric model and an extinction hypercube.
calibrate_telescopes	TelescopeCalibrations/uc-cp-200.cwl (Workflow)	Telescope Calibration	This workflow performs telescope calibrations and provides camera calibrations, psfs and optical throughputs.

Outputs

ID	Type	Label	Doc
psfs	File	Array Telescopes' PSFs	Point Spread Functions for each telescope of the array,
atmospheric_model	File	Atmospheric Model	Atmospheric model as a table in ecsv format.
camera_calibrations	File	Array Cameras' Calibrations	Calibation parameters for each camera of the array, including pedestals, gain, DC/p.e., etc.
optical_throughputs	File	Optical Throughputs	Absolute optical throughputs and their uncertainties for each telescope of the array.
extinction_hypercube	File	Extinction Hypercube	A four-dimensional cube with optical depth (or transmission), altitude, wavelength and time as dimensions.
