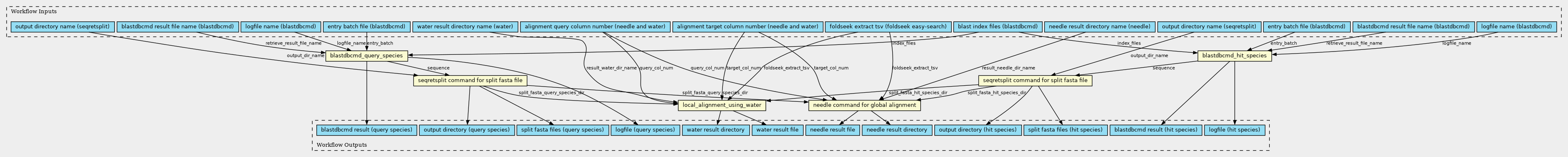

Workflow: retrieve sequence and perform pairwise alignment (sub-workflow process)
Fetched 2026-10-11 08:18:46 GMT
Verified with cwltool version 3.1.20230201224320
\"Perform pairwise alignment of protein sequences for pairs identified by structural similarity search. Step 1: blastdbcmd: ../Tools/14_blastdbcmd.cwl Step 2: seqretsplit: ../Tools/15_seqretsplit.cwl Step 3: needle (Global alignment): ../Tools/16_needle.cwl Step 4: water (Local alignment): ../Tools/16_water.cwl \"
- Selected
- |
- Default Values
- Nested Workflows
- Tools
- Inputs/Outputs
Inputs
| ID | Type | Title | Doc |
|---|---|---|---|
| BLAST_INDEX_FILES | File | blast index files (blastdbcmd) |
blast index files for blastdbcmd |
| FOLDSEEK_EXTRACT_TSV | File [TSV] | foldseek extract tsv (foldseek easy-search) |
foldseek extract tsv |
| WATER_RESULT_DIR_NAME | String [Directory name] | water result directory name (water) |
water result directory name |
| NEEDLE_RESULT_DIR_NAME | String [Directory name] | needle result directory name (needle) |
needle result directory name |
| ENTRY_BATCH_HIT_SPECIES | File | entry batch file (blastdbcmd) |
entry batch file for blastdbcmd |
| ENTRY_BATCH_QUERY_SPECIES | File | entry batch file (blastdbcmd) |
entry batch file for blastdbcmd |
| ALIGNMENT_QUERY_COLUMN_NUMBER | Integer | alignment query column number (needle and water) |
alignment column number (query species) for needle and water. Extract columns describing UniProt ID pairs (query IDs) from the TSV file read with the FOLDSEEK_EXTRACT_TSV parameter |
| ALIGNMENT_TARGET_COLUMN_NUMBER | Integer | alignment target column number (needle and water) |
alignment column number (target species) for needle and water. Extract columns describing UniProt ID pairs (hit IDs) from the TSV file read with the FOLDSEEK_EXTRACT_TSV parameter |
| BLASTDBCMD_LOGFILE_NAME_HIT_SPECIES | String [File name] | logfile name (blastdbcmd) |
logfile name. |
| BLASTDBCMD_LOGFILE_NAME_QUERY_SPECIES | String [File name] | logfile name (blastdbcmd) |
logfile name. |
| BLASTDBCMD_RESULT_FILE_NAME_HIT_SPECIES | String [File name] | blastdbcmd result file name (blastdbcmd) |
blastdbcmd result file name. |
| SEQRETSPLIT_OUTPUT_DIR_NAME_HIT_SPECIES | String [Directory name] | output directory name (seqretsplit) |
output directory name for seqretsplit |
| BLASTDBCMD_RESULT_FILE_NAME_QUERY_SPECIES | String [File name] | blastdbcmd result file name (blastdbcmd) |
blastdbcmd result file name. |
| SEQRETSPLIT_OUTPUT_DIR_NAME_QUERY_SPECIES | String [Directory name] | output directory name (seqretsplit) |
output directory name for seqretsplit |
Steps
| ID | Runs | Label | Doc |
|---|---|---|---|
| blastdbcmd_hit_species |
../Tools/14_blastdbcmd.cwl
(CommandLineTool)
|
||
| seqretsplit_hit_species |
../Tools/15_seqretsplit.cwl
(CommandLineTool)
|
seqretsplit command for split fasta file |
seqretsplit command for split fasta file which is created by /Tools/14_blastdbcmd.cwl. Before executing, make sure the blastdbcmd result file is already created by /Tools/14_blastdbcmd.cwl |
| blastdbcmd_query_species |
../Tools/14_blastdbcmd.cwl
(CommandLineTool)
|
||
| seqretsplit_query_species |
../Tools/15_seqretsplit.cwl
(CommandLineTool)
|
seqretsplit command for split fasta file |
seqretsplit command for split fasta file which is created by /Tools/14_blastdbcmd.cwl. Before executing, make sure the blastdbcmd result file is already created by /Tools/14_blastdbcmd.cwl |
| local_alignment_using_water |
../Tools/16_water.cwl
(CommandLineTool)
|
||
| global_alignment_using_needle |
../Tools/16_needle.cwl
(CommandLineTool)
|
needle command for global alignment |
needle command for global alignment using the foldseek easy-search result TSV file and the split FASTA files. |
Outputs
| ID | Type | Label | Doc |
|---|---|---|---|
| output_dir_hit_species | Directory | output directory (hit species) | |
| output_water_result_dir | Directory | water result directory | |
| output_dir_query_species | Directory | output directory (query species) | |
| output_needle_result_dir | Directory | needle result directory | |
| output_water_result_file | File[] | water result file | |
| output_needle_result_file | File[] | needle result file | |
| output_logfile_hit_species | File | logfile (hit species) | |
| output_logfile_query_species | File | logfile (query species) | |
| output_blastdbcmd_result_hit_species | File | blastdbcmd result (hit species) | |
| output_split_fasta_files_hit_species | File[] | split fasta files (hit species) | |
| output_blastdbcmd_result_query_species | File | blastdbcmd result (query species) | |
| output_split_fasta_files_query_species | File[] | split fasta files (query species) |
