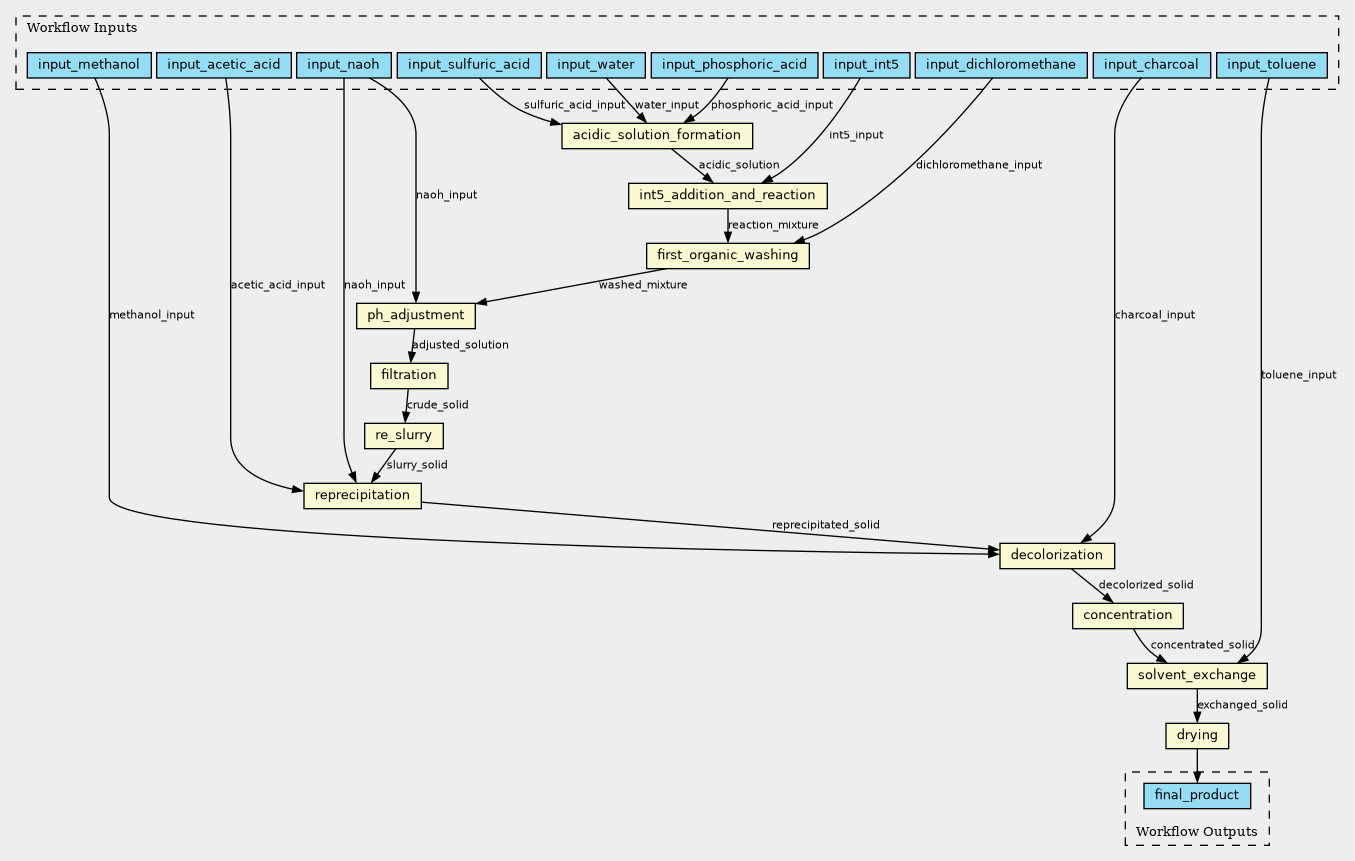

Workflow: chemprodev.cwl
Workflow for the synthesis and purification of 5-methoxytryptamine, based on a series of chemical reactions, extractions, filtrations, and other unit operations.
- Selected
- |
- Default Values
- Nested Workflows
- Tools
- Inputs/Outputs
Unknown workflow license, check
source repository.
Inputs
ID | Type | Title | Doc |
---|---|---|---|
input_int5 | File |
Intermediate 5 input file. |
|
input_naoh | File |
Sodium hydroxide solution input file. |
|
input_water | File |
Water input file. |
|
input_toluene | File |
Toluene input file. |
|
input_charcoal | File |
Activated charcoal input file. |
|
input_methanol | File |
Methanol input file. |
|
input_acetic_acid | File |
Acetic acid input file. |
|
input_sulfuric_acid | File |
Sulfuric acid input file. |
|
input_dichloromethane | File |
Dichloromethane input file. |
|
input_phosphoric_acid | File |
Phosphoric acid input file. |
Steps
ID | Runs | Label | Doc |
---|---|---|---|
drying |
31c35f89f8e903db480e01ee6bdf2d98
(CommandLineTool)
|
||
re_slurry |
f6bae7331f4247b4f9bf761b9e122bfb
(CommandLineTool)
|
||
filtration |
2b6d3d4391342d7b54e9befe7bf27332
(CommandLineTool)
|
||
concentration |
08294b63c986b3e3c2aaa71065803567
(CommandLineTool)
|
||
ph_adjustment |
9ba8ad993c8620d4554b9bd06a302fea
(CommandLineTool)
|
||
decolorization |
eee3a5f8a717dac9286e05d039f6e9bf
(CommandLineTool)
|
||
reprecipitation |
848b3241753c4f992b6db56b57aba027
(CommandLineTool)
|
||
solvent_exchange |
b021c325e65149ce471f8d106588f9b6
(CommandLineTool)
|
||
first_organic_washing |
350c4a3e2b5f58241385ea8de27018de
(CommandLineTool)
|
||
acidic_solution_formation |
eb6e94d2ca3b6f32e92d13d7152169ba
(CommandLineTool)
|
||
int5_addition_and_reaction |
113ea2be3d3f886d400155959f40f6e2
(CommandLineTool)
|
Outputs
ID | Type | Label | Doc |
---|---|---|---|
final_product | File |
Final dried 5-methoxytryptamine product. |
Permalink:
https://w3id.org/cwl/view/git/e56456381c2588e3933d91b47c47b7e61023683b/chemprodev.cwl
