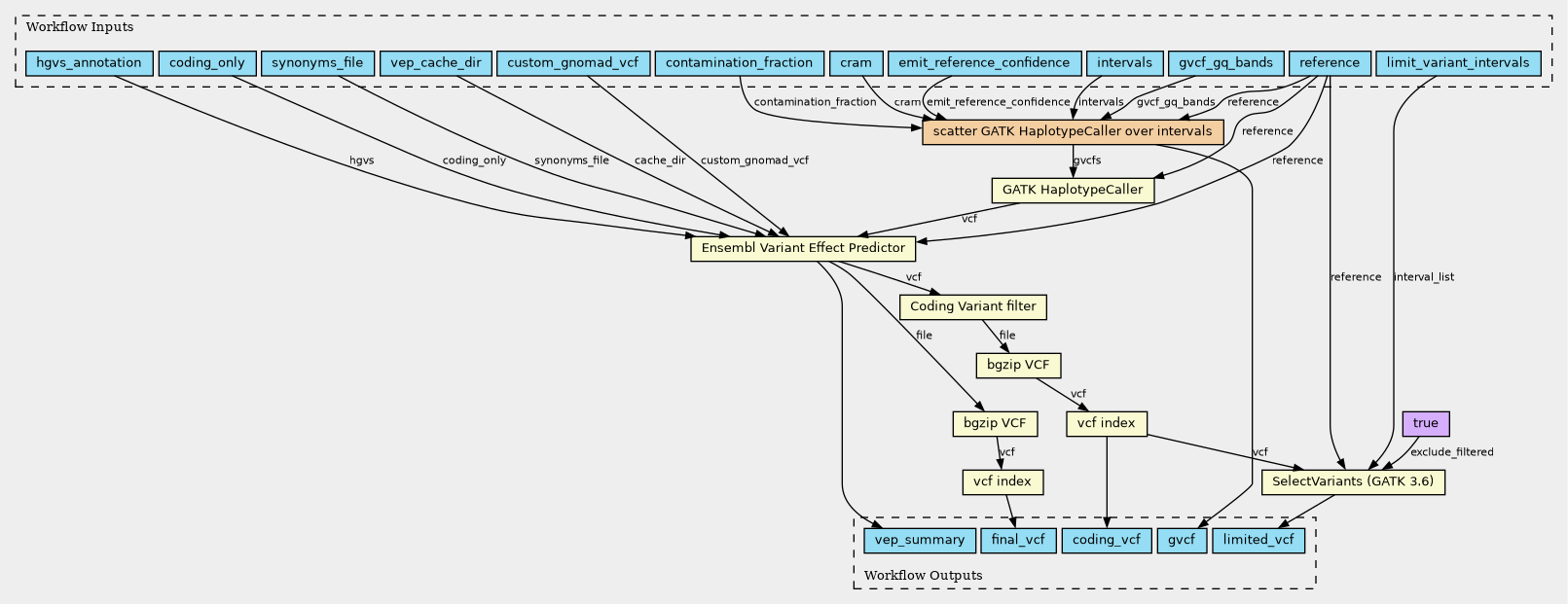

Workflow: exome alignment and germline variant detection
Fetched 2025-01-07 20:18:51 GMT
Verified with cwltool version 3.1.20230201224320
- Selected
- |
- Default Values
- Nested Workflows
- Tools
- Inputs/Outputs
This workflow is Open Source and may be reused according to the terms of:
MIT License
Note that the tools invoked by the workflow may have separate licenses.
Inputs
| ID | Type | Title | Doc |
|---|---|---|---|
| cram | File | ||
| intervals | b9f2bf9f6dd3ecd283bcbb3ff273db4b[] | ||
| reference | String | ||
| coding_only | Boolean (Optional) | ||
| gvcf_gq_bands | String[] | ||
| synonyms_file | File (Optional) | ||
| vep_cache_dir | String (Optional) | ||
| hgvs_annotation | Boolean (Optional) | ||
| custom_gnomad_vcf | File (Optional) | ||
| contamination_fraction | String (Optional) | ||
| limit_variant_intervals | File | ||
| emit_reference_confidence | String |
Steps
| ID | Runs | Label | Doc |
|---|---|---|---|
| genotype_gvcfs |
gatk_genotypegvcfs.cwl
(CommandLineTool)
|
GATK HaplotypeCaller | |
| limit_variants |
select_variants.cwl
(CommandLineTool)
|
SelectVariants (GATK 3.6) | |
| bgzip_coding_vcf |
bgzip.cwl
(CommandLineTool)
|
bgzip VCF | |
| haplotype_caller |
gatk_haplotypecaller_iterator.cwl
(Workflow)
|
scatter GATK HaplotypeCaller over intervals | |
| index_coding_vcf |
index.cwl
(CommandLineTool)
|
vcf index | |
| annotate_variants |
vep.cwl
(CommandLineTool)
|
Ensembl Variant Effect Predictor | |
| bgzip_annotated_vcf |
bgzip.cwl
(CommandLineTool)
|
bgzip VCF | |
| index_annotated_vcf |
index.cwl
(CommandLineTool)
|
vcf index | |
| coding_variant_filter |
coding_variant_filter.cwl
(CommandLineTool)
|
Coding Variant filter |
Outputs
| ID | Type | Label | Doc |
|---|---|---|---|
| gvcf | File[] | ||
| final_vcf | File | ||
| coding_vcf | File | ||
| limited_vcf | File | ||
| vep_summary | File |
Permalink:
https://w3id.org/cwl/view/git/6eb7d35ad46207f4ff49e84106b717e17331eb4b/detect_variants/germline_detect_variants.cwl
