Workflow: SV Pipeline

Fetched 2025-07-06 15:07:29 GMT
children parents

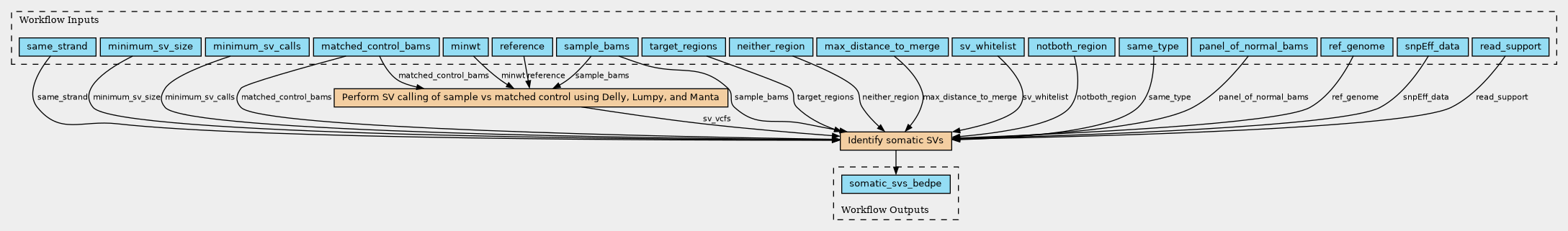

Workflow as SVG
  • Selected
  • Default Values
  • Nested Workflows
  • Tools
  • Inputs/Outputs

Inputs

ID Type Title Doc
minwt Integer (Optional)

Minimum weight parameter for lumpy.

reference File

Absolute path to reference.fa. Should have reference.dict and .fai files in the same directory

same_type Boolean (Optional)

Require that SVs be reported as the same type of event from different callers. Used by SURVIVOR

ref_genome String

Name of genome, eg: hg19. Should match snpEff db

same_strand Boolean (Optional)

Require that SVs be reported on the same strand from different callers. Used by SURVIVOR

sample_bams File[]

Array of bam files. Contains cfDNA/plasma samples. Should have .bai files in same directory

snpEff_data Directory

snpEff db. Example: /location/of/database/hg19

read_support Integer

Minimum required number of total split-reads + paired-end reads that support a variant.

sv_whitelist File (Optional)

Tab-delimited bed file of SV hotspots. Each line in the bed file should describe a likely breakpoint region. For example, if one end of a suspect structural variant is expected to be around chr1:5000, the bed file might include 'chr1 4000 6000'.

neither_region File

Bed file. Neither end of SV should fall in these regions

notboth_region File

Bed file. Max of one end of SV is allowed to be in these regions

target_regions File

Bed file of target regions from targeted sequencing

minimum_sv_size Integer (Optional)

Minimum bp length to be considered. Used by SURVIVOR

minimum_sv_calls Integer (Optional)

Minimum number of callers that must call an SV for it to be considered a consensus call. Range 1-3.

matched_control_bams File[]

Array of bam files. Should be in the same order as sample_bams (ie the nth sample in each array are matches). Should have .bai files in same directory

panel_of_normal_bams File[]

Array of bams used as an unmatched, panel of normals. Should have accompanying .bai files

max_distance_to_merge Integer (Optional)

Parameter for SURVIVOR - merging distance of SVs

Steps

ID Runs Label Doc
sv_calling Perform SV calling of sample vs matched control using Delly, Lumpy, and Manta
identify_somatic_calls Identify somatic SVs

Outputs

ID Type Label Doc
somatic_svs_bedpe File

Final list of all SVs called

Permalink: https://w3id.org/cwl/view/git/656d9ae18f164f983c5672bcf51037cd73309f4f/pipelines/sv_pipeline.cwl
