CWL Workflow: autosubmit.cwl

Workflow: autosubmit.cwl

Fetched 2025-01-08 23:33:50 GMT

Verified with cwltool version 3.1.20230201224320

An example workflow created using Autosubmit's basic a000 workflow as reference. The `platform.yml` is ignored as it contains only information about platforms (e.g. it could be given to a tool like Troika as-is). `expdef.yml` and `autosubmit.yml` basically provide CWL inputs. `jobs.yml` contains the steps of the CWL workflow, with their dependencies. In CWL dependencies are specified via inputs and outputs. When task A outputs a value X, and task B has an input of type A/X, then the dependency A -> B is created in CWl. This is different than Autosubmit, and needs some care to guarantee the correct order in the workflow graph of start dates, members, chunks, etc.

Selected
|
Default Values
Nested Workflows
Tools
Inputs/Outputs

This workflow is Open Source and may be reused according to the terms of: https://raw.githubusercontent.com/kinow/kinoshita.eti.br/79725036c608a9cfaeb97465061d66fcc4ccb8a6/LICENSE.txt

Note that the tools invoked by the workflow may have separate licenses.

Inputs

There are no inputs in this workflow

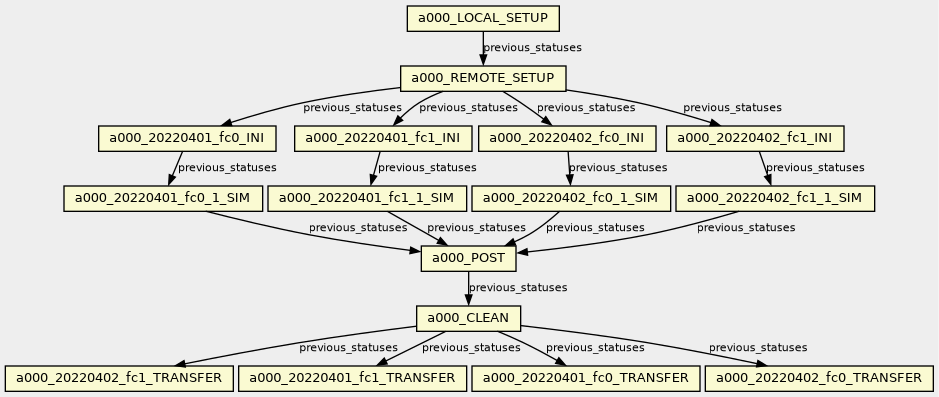

Steps

ID	Runs	Label	Doc
a000_POST	33083461e6e5a3edc03554c564192cd4 (?)
a000_CLEAN	60b7b21e28d3855b3fc7d8ea2eafbb2b (?)
a000_LOCAL_SETUP	65b581645a1f6d0613098803778e52a9 (?)
a000_REMOTE_SETUP	28c1e59f2a4e05e90316cb16b48c8842 (?)
a000_20220401_fc0_INI	642011219e02f26a02c0f391f6105a7c (?)
a000_20220401_fc1_INI	0f95e65100ec9bbaecd1b70e42b6118e (?)
a000_20220402_fc0_INI	5d23d760cb8d3754e4858fe6b818b0d7 (?)
a000_20220402_fc1_INI	aebca820be8f2116d78110f1c7d06bab (?)
a000_20220401_fc0_1_SIM	fd24b198b4d7c1514cf95fbd6c60830a (?)
a000_20220401_fc1_1_SIM	3a07d497e51d6068ae0b4ef9d5fe51b8 (?)
a000_20220402_fc0_1_SIM	64277e02494e252ffcf3f2125910271b (?)
a000_20220402_fc1_1_SIM	cc20efffa095bd8eab7a81784d7dc8bb (?)
a000_20220401_fc0_TRANSFER	0ed0671e3e9ce5799714d351c435def1 (?)
a000_20220401_fc1_TRANSFER	a9a0436e5bfd68b06f82d2e9e64dd082 (?)
a000_20220402_fc0_TRANSFER	efc37702e3640f31444426604aa73a3f (?)
a000_20220402_fc1_TRANSFER	0131d9ed34afc325591b49f2ad9f91ea (?)

Outputs

There are no outputs in this workflow
